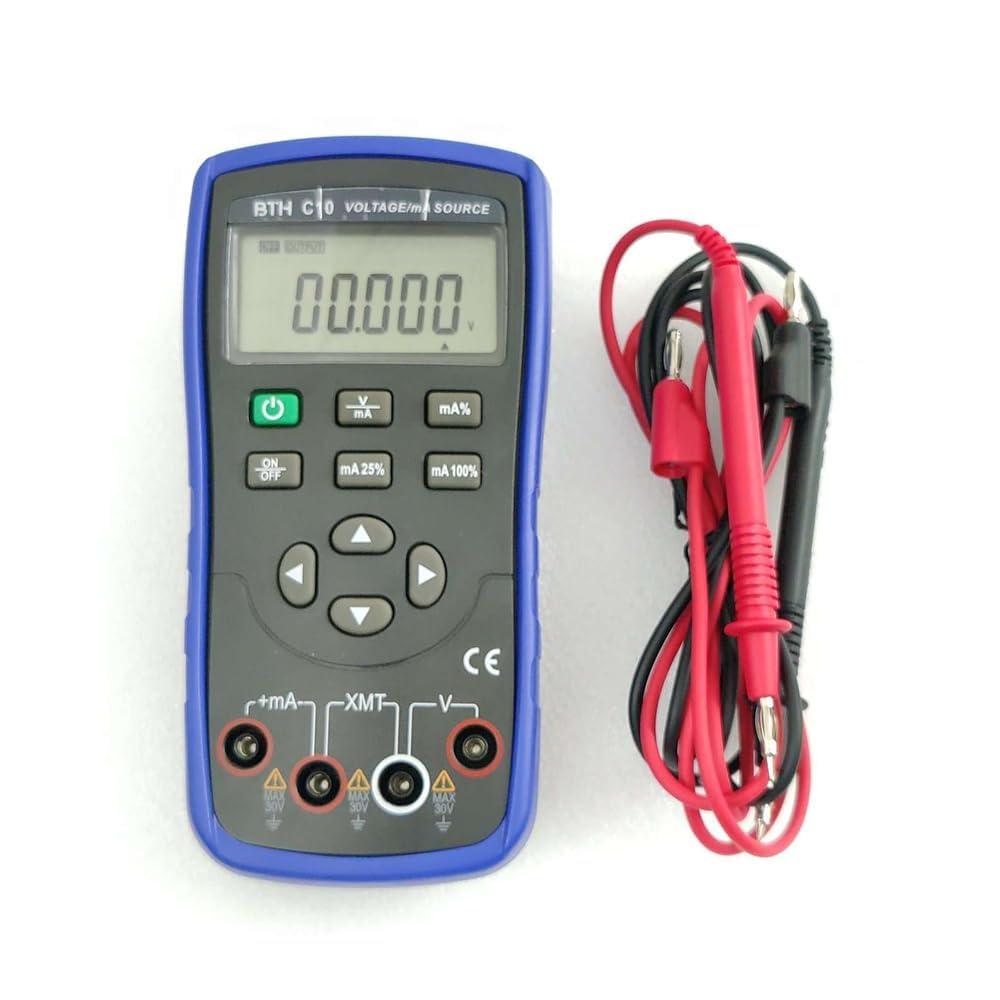

Digital Handheld Source Process Calibrator/Loop/Multifunction Process calibrator – Voltage/mA Sourcing Field Calibration Tool for Process Control System Verification, R&D | Model: BTH-C10
$338.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.nextmovesport.nl
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$338.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.nextmovesport.nl
Free 30-day returns Details
Product details
| Management number | 220420784 | Release Date | 2026/05/03 | List Price | $135.20 | Model Number | 220420784 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- DC voltage (DCV) Range: 10V; Output range: 0.000 11.000V; Resolution: 0.001V; Accuracy: 0.05%+2; Illustration: Max output current 5mA | Voltage (DCA) Range: 20mA; Output range: 0.000 22.000mA; Resolution: 0.001mA; Accuracy: 0.05%+4uA; Illustration: 20mA Max. load IKΩ
- Simulate transmitter (sinking current): Range: -20mA; Output range: 0.000-22.000mA; Resolution: 0.001mA; Accuracy: 0.05%+4uA; Illustration: 20mA Max. Load IKΩ (Note: power supply range: 5-25VDC) | Loop power: Range: 24V; Accuracy: ±10%; Illustration: Max. output current
- Operating Temperature: 0°C to 50°C | Operating Humidity: <80% RH | Storage Temperature: < -10°C to 55°C | Storage Humidity: < 90% RH | Coeddicient: 5°C to 18°C, 28°C to 40°C | Safety: Complies with IEC 1010 (Safety Standard issued by International Electrician Committee)
- Power: Two 1.5V Alkaline batteries (LR6)(Not Included) | Power Consumption: 400mA/3V, in condition of 1K Q load and 20mA output | Maximum voltage: 30V (Within terminals or between terminal and earth ground)
- Supply Scope: 1 Unit of BTH C-10 Current and Voltage Calibrator, Instruction Manual, Industrial Testing Leads CS-36 (Clips for Probe) | Applications:Process Control System Verification, Field Calibration of Portable Instruments, Research and Development.
| Model | BTH-C10 |
|---|---|
| Brand Name | INSTRUKART |
| Part Number | BTH-C10-1 |
| Manufacturer | INSTRUKART |
| Included Components | 1 unit of BTH-C10 with an Instruction manual |
| Warranty Description | NO Warranty |
